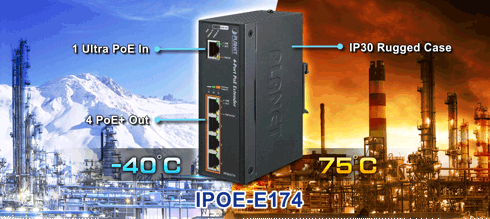

Hardware Specifications |
Network Connector |
PoE In Port |
1 x 10/100/1000BASE-T Ethernet with ultra PoE “Data + DC” in, auto |
MDI/MDI-X, auto-negotiation RJ45 connector |
PoE Out Port |
4 x 10/100/1000BASE-T Ethernet with IEEE 802.3af/at PoE “Data + DC” |
out, auto MDI/MDI-X, auto-negotiation RJ45 connector |
Switch Architecture |
Store-and-Forward switch architecture |
MAC Address Table |
8K MAC address table with auto learning function |
Data Buffer |
1Mbit |
Switch Fabric |
10Gbps |
Switch Throughput |
7.44Mpps @ 64Bytes |
Flow Control |
IEEE 802.3x pause frame for full duplex |
Back pressure for half duplex |
Jumbo Frame |
9Kbytes |
ESD Protection |
6KV DC |
EFT Protection |
6KV DC |
Enclosure |
IP30 metal case |

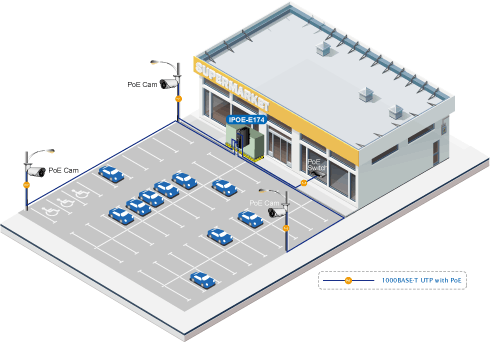

Installation |
DIN rail kit and wall-mount ear |

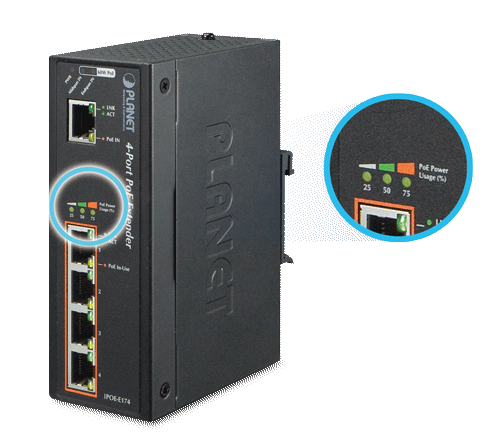

LED Display |
System: PWR (Green) |
Power Input: Midspan in (Green) |
Power Input: Endspan in (Green) |
PoE Power Usage (%): 25 (Green) |
PoE Power Usage (%): 50 (Green) |
PoE Power Usage (%): 75 (Green) |
PoE Input Port: LNK/ACT (Green) |
PoE Input Port: PoE in (Orange) |
Per PoE Output Port: LNK/ACT (Green) |
Per PoE Output Port: PoE-in-Use (Orange) |
Cable |
Twisted-pair cable : |
■ 10BASE-T: 2-pair UTP Cat. 3, 4, 5 up to 100 meters |
■ 100BASE-TX: 2-pair UTP Cat. 5, 5e up to 100 meters |
■ 1000BASE-T: 4-pair UTP Cat. 5e, 6 up to 100 meters |
Dimensions (W x D x H) |
56 x 87.8 x 135 mm |
Weignt |
715g |
Power Consumption |
60 watts / 204.6BTU (Full loading with PoE function) |

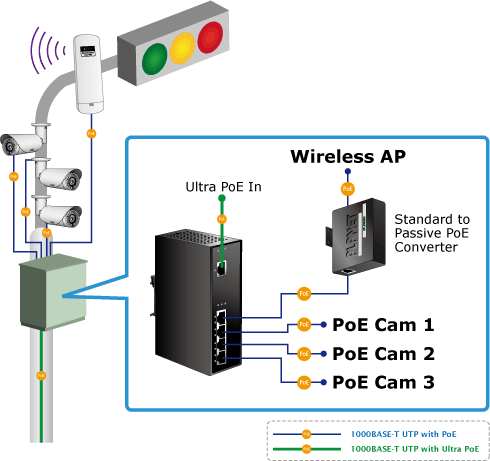

Power over Ethernet |
PoE Standard |
PoE In Port |
IEEE 802.3at High Power over Ethernet end-span / mid-span class 4 PD |
Per PoE Out Port |
IEEE 802.3at High Power over Ethernet end-span PSE |
IEEE 802.3af Power over Ethernet end-span PSE |
PoE Power |
PoE In Port |
50~57V DC, max. 60 watts |
Per PoE Out Port |
44~55V DC, max. 30.8 watts |
Power Pin Assignment |
PoE In Port |
1/2(+), 3/6(-); 4/5(+), 7/8(-) |
Per PoE Out Port |
1/2(+), 3/6(-) |

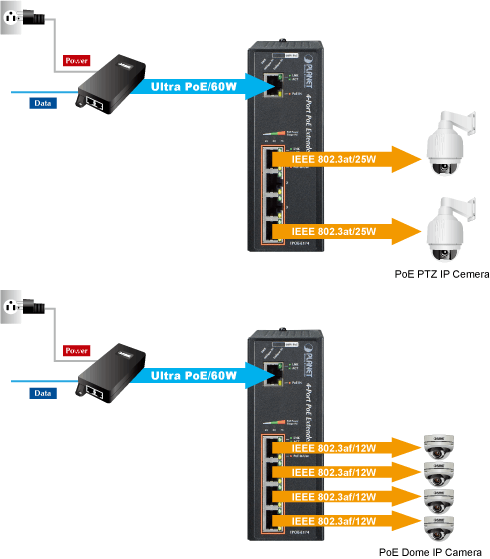

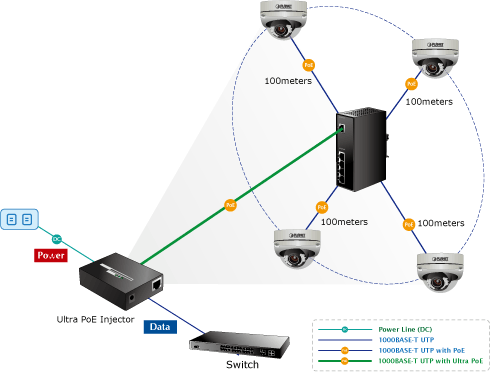

PoE Power Budget |
50 watts (max.) @ Ultra PoE input |
20 watts (max.) @ IEEE 802.3at PoE+ input |
No support @ IEEE 802.3af PoE input |
Standards Conformance |
Regulation Compliance |
FCC Part 15 Class A, CE |
Stability Testing |
IEC 60068-2-32 (Free fall) |
IEC 60068-2-27 (Shock) |
IEC 60068-2-6 (Vibration) |
Standards Compliance |
IEEE 802.3 Ethernet |
IEEE 802.3u Fast Ethernet |
IEEE 802.3ab Gigabit Ethernet |
IEEE 802.3x Flow Control |
IEEE 802.3af Power over Ethernet |
IEEE 802.3at High Power over Ethernet |
Environment |
Operating |
Temperature: -40 ~ 75 degrees C |
Relative Humidity: 5 ~ 95% (non-condensing) |
Storage |
Temperature: -40 ~ 85 degrees C |
Relative Humidity: 5 ~ 95% (non-condensing) |
