Hardware Specifications |
|

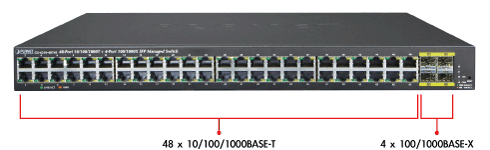

Copper Ports |
48 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
|
SFP/mini-GBIC Slots |
4 100/1000BASE-X SFP interfaces, |
|
Supports 100/1000Mbps dual mode and DDM |
|
Switch Architecture |
Store-and-Forward |
|
Switch Fabric |
104Gbps / non-blocking |
|
Switch Throughput@64bytes |
77.38Mpps @64bytes |
|
Address Table |
16K entries |
|
Shared Data Buffer |
12Mbit SRAM packet buffer |
|
Flow Control |
IEEE 802.3x pause frame for full-duplex |
|
Back pressure for half-duplex |
|
Jumbo Frame |
10K bytes |
|
Reset Button |
< 5 sec: System reboot |
|
> 5 sec: Factory default |
|
LED |
System: |
|
PWR(Power) (Green) |
|
SYS(System) (Green) |
|
10/100/1000T RJ45 Interfaces (Port 1 to Port 48): |
|
1000Mbps (Orange), LNK/ACT (Green) |
|
10/100Mbps (None), LNK/ACT (Green) |
|
100/1000Mbps SFP Interfaces (Port 49 to Port 52): |
|
1000Mbps, LNK/ACT (Green) |
|
100Mbps, LNK/ACT (Orange) |
|
Thermal Fan |
Fanless design |
|
Power Requirements |
AC 100~240V, 50/60Hz, auto-sensing. |
|
ESD Protection |
6KV DC |
|
Power Consumption / Dissipation |
34 watts / 116 BTU |
|
Dimensions (W x D x H) |
440 x 300 x 44.5 mm, 1U height |
|
Weight |
3.7 kg |
|
Enclosure |
Metal |
|
Layer 2 Functions |
|
Port Mirroring |
TX / RX / Both |
|
Many-to-1 monitor |
|
VLAN |
802.1Q tagged-based VLAN |
|
Up to 256 VLAN groups, out of 4094 VLAN IDs |
|
802.1ad Q-in-Q tunneling (VLAN stacking) |
|
Voice VLAN |
|
Protocol VLAN |
|
Private VLAN (Protected port) |
|
GVRP |
|
Management VLAN |
|
Link Aggregation |
IEEE 802.3ad LACP and static trunk |
|
Supports 8 trunk groups with each having 8 ports |
|
Spanning Tree Protocol |
STP, IEEE 802.1D Spanning Tree Protocol |
|
RSTP, IEEE 802.1w Rapid Spanning Tree Protocol |
|
MSTP, IEEE 802.1s Multiple Spanning Tree Protocol |
|
STP BPDU Guard, BPDU Filtering and BPDU Forwarding |
|
IGMP Snooping |
IGMP (v2/v3) snooping |
|
IGMP querier |
|
Up to 256 multicast groups |
|
MLD Snooping |
IPv6 MLD (v1 / v2) snooping, up to 256 multicast groups |
|
Access Control List |
IPv4/IPv6 IP-based ACL / MAC-based ACL |
|
IPv4/IPv6 IP-based ACE / MAC-based ACE |
|
QoS |
8 mapping ID to 8 level priority queues |
|
- Port number |
|
- 802.1p priority |
|
- DSCP / IP precedence of IPv4 / IPv6 packets |
|
Traffic classification based, strict priority and WRR |
|
Ingress / Egress Rate Limit per port bandwidth control |
|
Security |
IEEE 802.1X port-based authentication |
|
Built-in RADIUS client to co-operate with RADIUS server |
|
RADIUS / TACACS+ authentication |
|
IP-MAC port binding |
|
MAC filtering |
|
Static MAC address |
|
DHCP snooping and DHCP Option82 |
|
STP BPDU guard, BPDU filtering and BPDU forwarding |
|
DoS attack prevention |
|
ARP inspection |
|
IP source guard |
|
Storm control support |
|
- Broadcast / unknown unicast / unknown multicast |
|
Management Functions |
|
Basic Management Interfaces |
Web browser / Telnet / SNMP v1, v2c, v3 |
|
Firmware upgrade via HTTP / TFTP protocol through Ethernet network |
|
Configuration upload / download through HTTP / TFTP |
|
Remote / Local Syslog |
|
System log |
|
LLDP protocol |
|
SNTP |
|
PLANET Smart Discovery Utility |
|
Secure Management Interfaces |
SSH, SSL, SNMPv3 |
|
SNMP MIBs |
RFC 3635 Ethernet-like MIB |
|
RFC 2863 Interface Group MIB |
|
RFC 2819 RMON (1, 2, 3, 9) |
|
RFC 1493 Bridge MIB |
|
Standards Conformance |
|
Regulation Compliance |
FCC Part 15 Class A, CE |
|
Standards Compliance |
IEEE 802.3 10BASE-T |
|
IEEE 802.3u 100BASE-TX / 100BASE-FX |
|
IEEE 802.3z Gigabit SX/LX |
|
IEEE 802.3ab Gigabit 1000BASE-T |
|
IEEE 802.3x flow control and back pressure |
|
IEEE 802.3ad port trunk with LACP |
|
IEEE 802.1D Spanning Tree Protocol |
|
IEEE 802.1w Rapid Spanning Tree Protocol |
|
IEEE 802.1s Multiple Spanning Tree Protocol |
|
IEEE 802.1p Class of Service |
|
IEEE 802.1Q VLAN tagging |
|
IEEE 802.1X Port Authentication Network Control |
|
IEEE 802.1ab LLDP |
|
RFC 768 UDP |
|
RFC 793 TFTP |
|
RFC 791 IP |
|
RFC 792 ICMP |
|
RFC 2068 HTTP |
|
RFC 1112 IGMP version 1 |
|
RFC 2236 IGMP version 2 |
|
RFC 3376 IGMP version 3 |
|
RFC 2710 MLD version 1 |
|
RFC 3810 MLD version 2 |
|
Environment |
|
Operating |
Temperature: 0 ~ 50 degrees C |
|
Relative Humidity: 5 ~ 95% (non-condensing) |
|
Storage |
Temperature: -20 ~ 70 degrees C |
|
Relative Humidity: 5 ~ 95% (non-condensing) |
