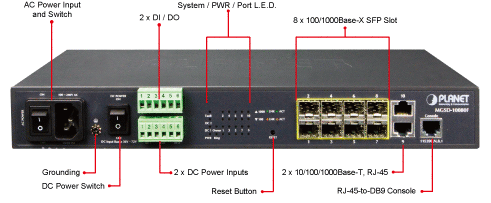

Hardware Specification |
|

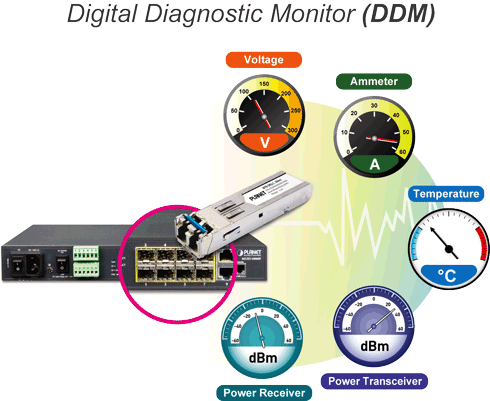

SFP/mini-GBIC Slots |
8 1000Base-SX/LX/BX SFP interfaces, from port 1 to port 8 |
|
Compatible with 100Base-FX SFP |
|
Copper Ports |
2 10/ 100/1000Base-T RJ-45 Auto-MDI/MDI-X ports |
|
Console Port |
1 x RJ-45-to-RS-232 serial port (115200, 8, N, 1) |
|
Switch Architecture |
Store-and-Forward |
|
Throughput (packet per second) |
14.8Mpps @ 64Bytes packet |
|
Switch Fabric |
20Gbps / non-blocking |
|
Address Table |
8K entries, automatic source address learning and ageing |
|
Share Data Buffer |
4Mbits |
|
Flow Control |
IEEE 802.3x Pause Frame for Full-Duplex |
|
Back pressure for Half-Duplex |
|
Jumbo Frame |
9Kbytes |
|
Reset Button |
< 5 seconds: System Reboot |
|
> 10 seconds: Factory Default |
|
Dimensions (W x D x H) |
330 x 155 x 43.5 mm, 1U high |
|
Weight |
1661g |
|
LED Indicator |
System: |
|
PWR (Green) |
|
DC 1 (Green) |
|
DC 2 (Green) |
|
Fault Alarm (Green) |
|
Ring* (Green) |
|
Ring Owner* (Green) |
|
Per Gigabit Ports: |
|
100 LNK/ACT (Orange) |
|
1000 LNK/ACT (Green) |
|
Power Consumption |
Max. 11.2 Watts / 38.2 BTU (AC input) |
|
Max. 10.8 Watts / 36.9 BTU (DC input) |
|
Power Requirements |
AC 100~240V, 50/60Hz 0.15A |
|
-36V DC @ 0.3A, Range: -36V ~ -72V DC |
|
Alarm |
One relay output for power failure. |
|
Alarm Relay current carry ability: 1A @ DC 24V |
|

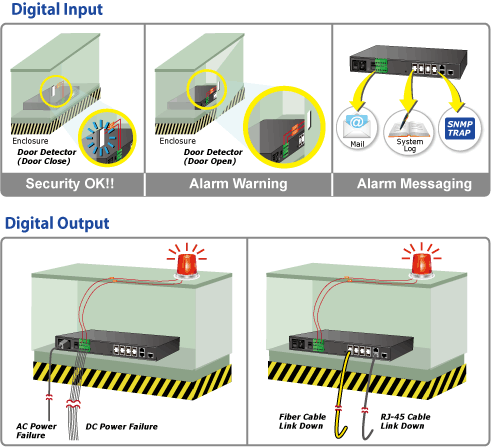

DI/DO |
2 Digital Input (DI) |
|
Level 0: -24V~2.1V (±0.1V) |
|
Level 1: 2.1V~24V (±0.1V) |
|
Input Load to 24V DC, 10mA max. |
|
2 Digital Output (DO): Open collector to 24VDC, 100mA max. |
|
Layer 2 Function |
|
Port Configuration |
Port disable / enable |
|
Auto-Negotiation 10/100/1000Mbps full and half duplex mode selection |
|
Flow Control disable / enable |
|
Bandwidth control on each port |
|
Power saving mode control |
|
Port Status |
Display each port’s speed duplex mode, link status, flow control status, |
|
auto negotiation status, trunk status |
|
Port Mirroring |
TX / RX / Both |
|
1 to 1 monitor |
|
VLAN |
802.1Q Tagged Based VLAN, up to 255 VLAN groups |
|
Q-in-Q tunneling |
|
Private VLAN Edge (PVE) |
|
MAC-based VLAN |
|
Protocol-based VLAN |
|
Voice VLAN |
|
MVR (Multicast VLAN Registration) |
|
Up to 255 VLAN groups, out of 4094 VLAN IDs |
|
Link Aggregation |
IEEE 802.3ad LACP / Static Trunk |
|
Supports 5 groups of 8-Port trunk support |
|
QoS |
Traffic classification based, Strict priority and WRR |
|
8-Level priority for switching |
|
- Port Number |
|
- 802.1p priority |
|
- 802.1Q VLAN tag |
|
- DSCP/TOS field in IP Packet |
|
IGMP Snooping |
IGMP (v1/v2/V3) Snooping, up to 255 multicast Groups |
|
IGMP Querier mode support |
|
MLD Snooping |
MLD (v1/v2) Snooping, up to 255 multicast Groups |
|
MLD Querier mode support |
|
Access Control List |
IP-based ACL / MAC-based ACL |
|
Up to 123 entries |
|
Bandwidth Control |
Per port bandwidth control |
|
Ingress: 500Kb~1000Mbps |
|
Egress: 500Kb~1000Mbps |
|
Management |
|
Basic Management Interfaces |
Console, Telnet, Web Browser, SNMP v1, v2c and v3 |
|
Secure Management Interface |
SSH, SSL, SNMP v3 |
|
SNMP MIBs |
RFC-1213 MIB-II |
|
IF-MIB |
|
RFC-1493 Bridge MIB |
|
RFC-1643 Ethernet MIB |
|
RFC-2863 Interface MIB |
|
RFC-2665 Ether-Like MIB |
|
RFC-2819 RMON MIB (Group 1) |
|
RFC-2737 Entity MIB |
|
RFC-2618 RADIUS Client MIB |
|
RFC-2933 IGMP-STD-MIB |
|
RFC-3411 SNMP-Frameworks-MIB |
|
IEEE 802.1X PAE |
|
LLDP |
|
MAU-MIB |
|
Standards Conformance |
|
Regulation Compliance |
FCC Part 15 Class A, CE |
|
Standards Compliance |
IEEE 802.3 10Base-T |
|
IEEE 802.3u 100Base-TX/100Base-FX |
|

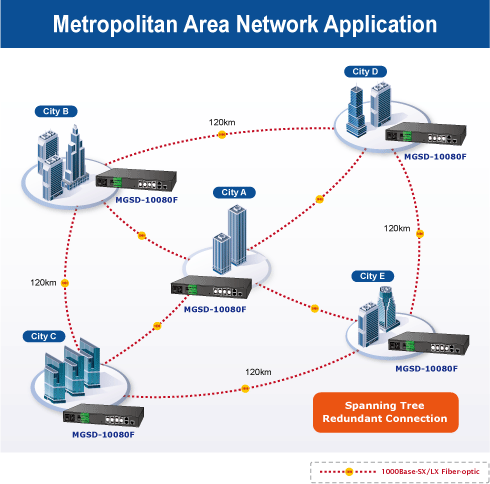

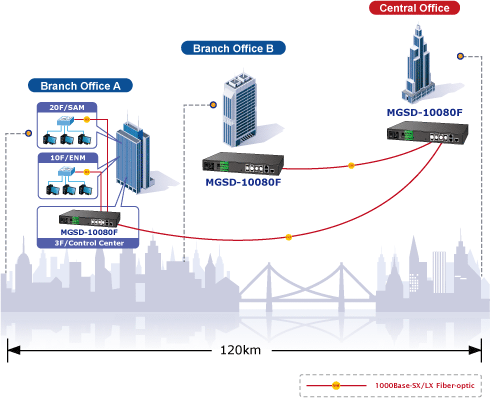

IEEE 802.3z Gigabit SX/LX |
|
IEEE 802.3ab Gigabit 1000T |
|
IEEE 802.3x Flow Control and Back pressure |
|
IEEE 802.3ad Port trunk with LACP |
|
IEEE 802.1D Spanning tree protocol |
|
IEEE 802.1w Rapid Spanning tree protocol |
|
IEEE 802.1s Multiple Spanning tree protocol |
|
IEEE 802.1p Class of service |
|
IEEE 802.1Q VLAN Tagging |
|
IEEE 802.1x Port Authentication Network Control |
|
IEEE 802.1ab LLDP |
|
RFC 768 UDP |
|
RFC 793 TFTP |
|
RFC 791 IP |
|
RFC 792 ICMP |
|
RFC 2068 HTTP |
|
RFC 1112 IGMP version 1 |
|
RFC 2236 IGMP version 2 |
|
Environment |
|
Operating |
Temperature: |
|
Relative Humidity: |
|
Storage |
Temperature: |
|
Relative Humidity: |
