Hardware |
|
Standard |

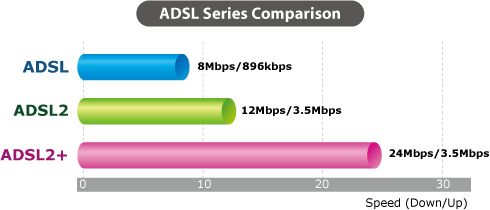

Compliant with ADSL Standard |
|
- Full-rate ANSI T1.413 Issue 2 |
|
- G.dmt (ITU G.992.1) |
|
- G.lite (ITU G.992.2) |
|
- G.hs (ITU G.994.1) |
|
Capable of ADSL2 Standard |
|
- G.dmt.bis (ITU G.992.3) Annex A, L and M |
|
- G.lite.bis (ITU G.992.4) |
|
Capable of ADSL2+ Standard |
|
- G.dmt.bisplus (ITU G.992.5) |
|
Protocol |
RFC 1483 Bridge |
|
RFC 1483 Router |
|
IEEE 802.1D transparent bridging |
|
Bridge Filtering |
|
Bridged or routed Ethernet encapsulation |
|
VC and LLC based multiplexing |
|
PPP over Ethernet (PPPoE) |
|
PPP over ATM (RFC 2364) |
|
AAL and ATM Support |
Supports up to 8PVCs |
|
VC and LLC Multiplexing |
|
ATM Adaptation Layer Type 5 (AAL5) |
|
Integrated ATM AAL5 support (UBR,CBR,VBR,VBR-rt, and VBR-nrt) |
|
OAM F4/F5 |
|
Ports |
LAN |
|
1 x 10Base-T/100Base-TX, Auto-Negotiation, Auto MDI/MDI-X |
|
|
|
WAN |
|
1 x RJ-11, Auto-Negotiation |
|
LED Indicators |
PWR, Link, Data, LAN |
|
Max. Concurrent Sessions |
4096 |
|
Software |
|
Protocol / Feature |
NAT supports PAT/NAPT and multimedia applications |
|
Static routing and RIPv1/2 |
|
Transparent Bridging |
|
SNTP |
|
DNS relay |
|
IGMP Proxy |
|
IGMP Multicast |
|
DMZ and Virtual Server |
|
Security |
Built-in NAT firewall |
|
PPP over PAP (Password Authentication Protocol; RFC1334) |
|
PPP over CHAP (Challenge Authentication Protocol; RFC1994) |
|
Access Control |
|
IP-based packet filtering |
|
MAC filtering |
|
Password protection for system management |
|
VPN |
VPN Pass-through |
|
Management |
Web-based configuration |
|
Embedded Telnet server for remote and local management |
|
Upgrade firmware and upload / download the configuration data via WEB |
|
SNMP v1/2 MIB supported |
|
Supports DHCP server/client/relay |
|
Built-in diagnostic tool and IP ping |
|
Environment Specifications |
|
Dimensions (W x D x H) |
78 x 74 x 26 mm |
|
Power |
5V DC, 1A (Consumption 2.1W) |
|
Temperature: Humidity |
Operating temperature: 0 ~ 50 degrees C |
|
Storage temperature: -20 ~ 70 degrees C |
|
Humidity: 10 ~ 90% non-condensing |
|
Emission |
FCC, CE |
