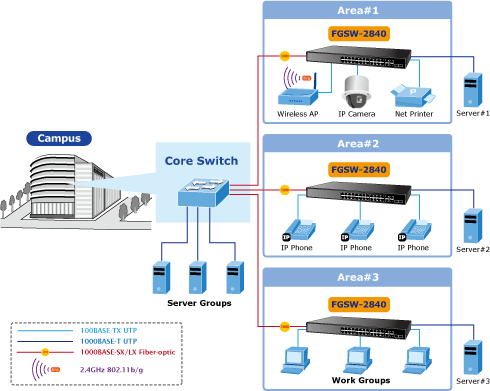

Hardware Specifications |
10/100TX Copper Ports (MDI/MDIX) |
24 |
10/100/1000T Copper Ports (MDI/MDIX) |
4 |
SFP/mini-GBIC Slots |
2 100/1000Base-X SFP interfaces |
Switch Fabric |
12.8Gbps / non-blocking |
Switch Throughput@64 bytes |
9.5Mpps @64 bytes |

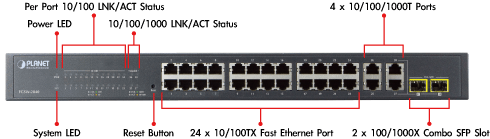

LED |
System: |
Power (Green) |
SYS (Green) |
10/100TX RJ-45 Interfaces (Port 1 to Port 24): |
100 LNK / ACT (Green) |
10 LNK/ACT (Orange) |
10/100/1000T RJ-45 Interfaces (Port 25 to Port 28): |
1000 LNK / ACT (Green) |
10/100 LNK/ACT (Orange) |
100/1000Mbps SFP Interfaces (Share with Port 27 and Port 28): |
1000 LNK / ACT (Green) |
100 LNK/ACT (Orange) |
Power Requirements |
100~240V AC, 50/60Hz, 0.6A |
Power Consumption / Dissipation |
Max. 12.8 watts / 43 BTU |
Dimensions (W x D x H) |
440 x 180 x 44 mm (1U height) |
Weight |
1.9kg |
Switch Architecture |
Store-and-Forward |
MAC Address Table |
8K entries |
Flow Control |
IEEE 802.3x pause frame for full-duplex |
Back pressure for half-duplex |
Maximum Transmit Unit |
9216bytes |
Reset Button |
> 5 sec: Factory default |
Enclosure |
Metal |
Layer 2 Functions |
Port Mirroring |
TX / RX |
Many-to-1 monitor |
Port Security |
up to 64 MAC address per port |
Link Aggregation |
IEEE 802.3ad LACP and static trunk supports 6 groups of 4-port trunk. |
VLAN |
802.1Q tagged-based VLAN, up to 512 VLAN groups, out of 4094 VLAN IDs Management VLAN |
Spanning Tree Protocol |
IEEE 802.1D STP |
IEEE 802.1w RSTP |
IEEE 802.1s MSTP |
Multicast |
IGMP (v1/v2/v3) snooping |
Multicast IP |
Multicast filter |
Access Control List |
L2 / L3 / L4 Access Control List |
QoS |
4 Priority Queues |
Traffic classification: |
- IEEE 802.1p CoS |
- DSCP / ToS priority |
Strict priority, Weighted Round Robin (WRR) and Equal CoS policies |
Ingress / Egress Rate Limit per port bandwidth control |
Storm Control support: |
- Broadcast / Unknown Unicast / Unknown Multicast |
Voice VLAN |
Security |
MAC Security: |
- Static MAC |
- Dynamic MAC address |
- MAC filtering |
Loop Guard, Root Guard, TC, BPDU Guard, STP BPDU Guard, BPDU DHCP filtering |
Port isolation |
Loopback detection |
Management Functions |
Basic Management Interfaces |
Web browser / Telnet / SNMP v1, v2c, v3 / SSL v2, v3 / SSH v1,v2 |
Firmware upgrade by HTTP protocol through Ethernet network |
Configuration Backup / Restore by HTTP protocol through Ethernet network |
Secure Management Interfaces |
HTTPs, SNMP v3 |
Web Access Control |
IP / MAC / Port-based Web access control |
System IP Address Assignment |
Static, DHCP and BooTP |
System Log |
System local log / remote log / backup log |
System Time Setting |
Manual setting, network time protocol, PC clock synchronization |
Supports daylight saving time |
SNMP RMON |
RFC 2819 RMON (1, 2, 3, 9) |
SNMP Trap |
Interface linkup and link down notification |
Maintenance |
Virtual cable test |
Loopback test |
Standards Conformance |
Regulation Compliance |
FCC Part 15 Class A, CE |
Standards Compliance |
IEEE 802.3 10Base-T |
IEEE 802.3u 100Base-TX / 100Base-FX |
IEEE 802.3z Gigabit SX/LX |
IEEE 802.3ab Gigabit 1000Base-T |
IEEE 802.3x Flow Control and Back pressure |
IEEE 802.3ad Port Trunk with LACP |
IEEE 802.1D Spanning Tree protocol |
IEEE 802.1w Rapid Spanning Tree protocol |
IEEE 802.1s Multiple Spanning Tree protocol |
IEEE 802.1p Class of Service |
IEEE 802.1Q VLAN Tagging |
RFC 768 UDP |
RFC 791 IP |
RFC 792 ICMP |
RFC 2068 HTTP |
RFC 1112 IGMP version 1 |
RFC 2236 IGMP version 2 |
RFC 3376 IGMP version 3 |
Environment |
Operating |
Temperature: 0 ~ 50 degrees C |
Relative Humidity: 5 ~ 95% (non-condensing) |
Storage |
Temperature: -10 ~ 70 degrees C |
Relative Humidity: 5 ~ 95% (non-condensing) |
