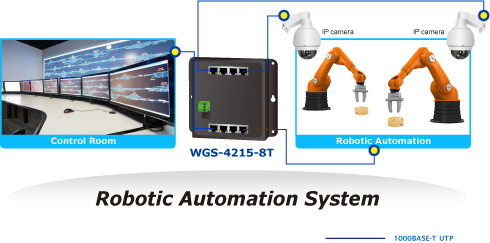

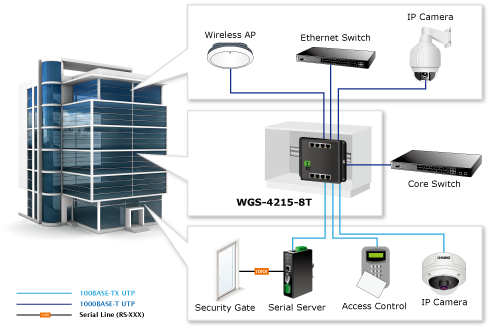

Hardware Specifications |
|
Copper Ports |
8-Port 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
|
Switch Architecture |
Store-and-Forward |
|
Switch Fabric |
16Gbps/non-blocking |
|
Switch Throughput@64 bytes |
11.9Mpps @64 bytes |
|
MAC Address Table |
8K entries |
|
Shared Data Buffer |
4.1 megabits |
|
Flow Control |
IEEE 802.3x pause frame for full-duplex |
|
Back pressure for half-duplex |
|
Jumbo Frame |
10 Kbytes |
|
Reset Button |
< 5 sec: System reboot |
|
> 5 sec: Factory default |
|
LED |
Power LED: Power (Green) |
|
10/100/1000BASE-TX Port: |
|
10/100 LNK/ACT (Orange) |
|
1000 LNK/ACT (Green) |
|

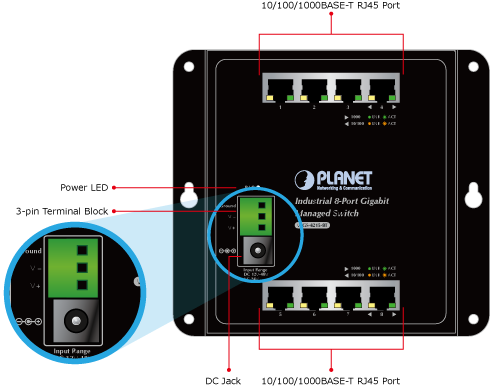

Connector |
■ Removable 3-pin terminal block for power input |
|
- Pin 1/2 for power (Pin 1: V+ / Pin 2: V-) |
|
- Pin 3 for earth ground |
|
■ DC power jack with 2.0mm central pole |
|

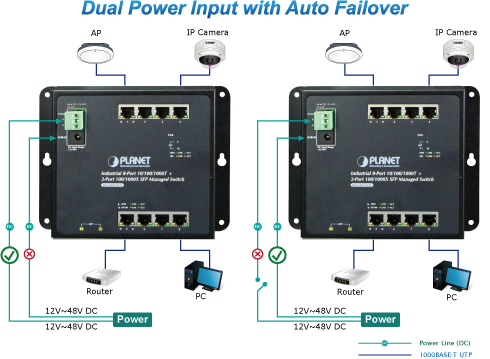

Power Requirements |
24V AC,1A (max.) |
|
12~48V DC,1A (max.) |
|
Power Consumption/ Dissipation |
Max. 10 watts/34 BTU |
|
Dimensions (W x D x H) |
148 x 25 x 134 mm |
|
Weight |
496g |
|
ESD Protection |
Contact Discharge 4KV DC |
|
Air Discharge 8KV DC |
|
Enclosure |
Metal |
|
Installation |
Wall mount, magnetic wall mount and DIN-rail kit |
|

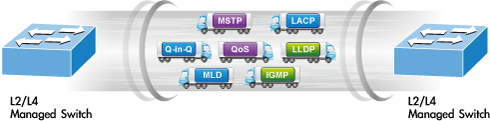

Layer 2 Functions |
|
Port Mirroring |
TX/RX/Both |
|
Many-to-1 monitor |
|
VLAN |
802.1Q tagged-based VLAN |
|
Up to 256 VLAN groups, out of 4094 VLAN IDs |
|
802.1ad Q-in-Q tunneling (VLAN stacking) |
|
Voice VLAN |
|
Protocol VLAN |
|
Private VLAN (Protected port) |
|
GVRP |
|
Management VLAN |
|
Link Aggregation |
IEEE 802.3ad LACP and static trunk |
|
Supports 4 groups with 4 ports per trunk |
|
Spanning Tree Protocol |
STP, IEEE 802.1D Spanning Tree Protocol |
|
RSTP, IEEE 802.1w Rapid Spanning Tree Protocol |
|
MSTP, IEEE 802.1s Multiple Spanning Tree Protocol |
|
STP BPDU Guard, BPDU Filtering and BPDU Forwarding |
|
IGMP Snooping |
IPv4 IGMP (v2/v3) snooping |
|
IGMP querier |
|
Up to 256 multicast groups |
|
MLD Snooping |
IPv6 MLD (v1/v2) snooping, up to 256 multicast groups |
|
Access Control List |
IPv4/IPv6 IP-based ACL and MAC-based ACL |
|
IPv4/IPv6 IP-based ACE and MAC-based ACE |
|
QoS |
8 mapping ID to 8 level priority queues |
|
- Port Number |
|
- 802.1p priority |
|
- DSCP/IP precedence of IPv4/IPv6 packets |
|
Traffic classification based, strict priority and WRR |
|
Ingress and Egress Rate Limit per port bandwidth control |
|
Security |
IEEE 802.1X port-based authentication |
|
Built-in RADIUS client to co-operate with RADIUS server |
|
RADIUS/TACACS+ authentication |
|
IP-MAC port binding |
|
MAC filtering |
|
Static MAC address |
|
DHCP snooping and DHCP Option82 |
|
STP BPDU guard, BPDU filtering and BPDU forwarding |
|
DoS attack prevention |
|
ARP inspection |
|
IP source guard |
|
Storm control support |
|
- Broadcast, unknown unicast and unknown multicast |
|
Management Functions |
|
Basic Management Interfaces |
Web browser, Telnet and SNMP v1, v2c, v3 |
|
Firmware upgrade by HTTP and TFTP protocol through Ethernet network |
|
Configuration upload/download through HTTP and TFTP |
|
Remote and Local Syslog |
|
System log |
|
LLDP protocol |
|
SNTP |
|
PLANET Smart Discovery Utility |
|
Secure Management Interfaces |
SSH, SSL, SNMP v3 |
|
SNMP MIBs |
RFC 1213 MIB-II |
|
RFC 1215 Generic Traps |
|
RFC 1493 Bridge MIB |
|
RFC 2674 Bridge MIB Extensions |
|
RFC 2737 Entity MIB (Version 2) |
|
RFC 2819 RMON (1, 2, 3, 9) |
|
RFC 2863 Interface Group MIB |
|
RFC 3635 Ethernet-like MIB |
|
Standards Conformance |
|
Regulatory Compliance |
FCC Part 15 Class A, CE |
|
Stability Testing |
IEC 60068-2-32 (free fall) |
|
IEC 60068-2-27 (shock) |
|
IEC 60068-2-6 (vibration) |
|
Standards Compliance |
IEEE 802.3 10BASE-T |
|
IEEE 802.3u 100BASE-TX/100BASE-FX |
|
IEEE 802.3z Gigabit SX/LX |
|
IEEE 802.3ab Gigabit 1000BASE-T |
|
IEEE 802.3x Flow Control and Back Pressure |
|
IEEE 802.3ad Port Trunk with LACP |
|
IEEE 802.1D Spanning Tree Protocol |
|
IEEE 802.1w Rapid Spanning Tree Protocol |
|
IEEE 802.1s Multiple Spanning Tree Protocol |
|
IEEE 802.1p Class of Service |
|
IEEE 802.1Q VLAN Tagging |
|
IEEE 802.1x Port Authentication Network Control |
|
IEEE 802.1ab LLDP |
|
RFC 768 UDP |
|
RFC 793 TFTP |
|
RFC 791 IP |
|
RFC 792 ICMP |
|
RFC 2068 HTTP |
|
RFC 1112 IGMP v1 |
|
RFC 2236 IGMP v2 |
|
RFC 3376 IGMP v3 |
|
RFC 2710 MLD v1 |
|
RFC 3810 MLD v2 |
|
Standards Compliance |
|
Operating |
Temperature: -40 ~ 75 degrees C |
|
Relative Humidity: 5 ~ 95% (non-condensing) |
|
Storage |
Temperature: -40 ~ 85 degrees C |
|
Relative Humidity: 5 ~ 95% (non-condensing) |
|
Accessories |
|
Standard Accessories |
■ Quick Installation Guide x 1 |
|
■ 3-pin Terminal Block Connector x 1 |
|
■ Wall-mounted Kit x 1 |
|
■ DIN-rail Kit x 1 |
|
■ Magnet Kit x 1 |
|
■ RJ45 Dust Cap x 8 |
