Hardware Specifications |
|
Standard Support |
IEEE 802.11b/g/n |
|
IEEE 802.3 |
|
IEEE 802.3u |
|
IEEE 802.3x |
|
Memory |
64 Mbytes DDR SDRAM |
|
16 Mbytes Flash |
|
PoE |
Passive PoE |
|
Interface |
Wireless IEEE802.11b/g/n, 2T2R |
|
PoE LAN (LAN 1): 1 x 10/100Base-TX, auto-MDI/MDIX, passive PoE |
|
LAN 2: 1 x 10/100Base-TX, auto-MDI/MDIX, passive PoE pass-through |
|
Antenna |
Built-in 14dBi dual-polarization antenna |
|
- Horizontal: 30 degrees |
|
- Vertical: 20 degrees |
|
Wireless RF Specifications |
|
Wireless Technology |
IEEE 802.11b/g |
|
IEEE 802.11n |
|
Data Rate |
IEEE 802.11b: 1, 2, 5.5, 11Mbps |
|
IEEE 802.11g: up to 54Mbps |
|
IEEE 802.11n (20MHz): up to 150Mbps |
|
IEEE 802.11n (40MHz): up to 300Mbps |
|
Media Access Control |
CSMA/CA |
|
Modulation |
Transmission/Emission type: OFDM |
|
Data modulation type: OFDM with BPSK, QPSK, 16-QAM, 64-QAM |
|
Frequency Band |
2.412GHz ~ 2.484GHz |
|
Operating Channel |
America/ FCC: 2.414~2.462GHz (11 Channels) |
|
Europe/ ETSI: 2.412~2.472GHz (13 Channels) |
|
Japan/ TELEC: 2.412~2.484GHz (14 Channels) |
|
RF Output Power (Max.) |
IEEE 802.11b: up to 25 ± 1dBm |
|
IEEE 802.11g: up to 22 ± 1dBm |
|
IEEE 802.11n: up to 21 ± 1dBm |
|
Receiver Sensitivity (dBm) |
IEEE 802.11b: -94dBm |
|
IEEE 802.11g: -91dBm |
|
IEEE 802.11n: -89dBm |
|
Output Power Control |
12~27dBm |
|
Power Consumption |
12W |
|
Power Requirements |
LAN: 24V DC, 1A/ Passive PoE |
|
Pin 4,5 V DC+ |
|
Pin 7,8 V DC- |
|
Pin 3 Reset |
|
Software |
|
LAN |
Built-in DHCP server supporting static IP address distribution |
|
Supports 802.1d STP (Spanning Tree) |
|
WAN |
■ Static IP |
|
■ Dynamic IP |
|
■ PPPoE |
|
Operating Mode |
■ Bridge |
|
■ WISP |
|
Firewall |
NAT firewall with SPI (Stateful Packet Inspection) |
|
Built-in NAT server supporting virtual server and DMZ |
|
Built-in firewall with port/ IP address/ MAC/ URL filtering |
|

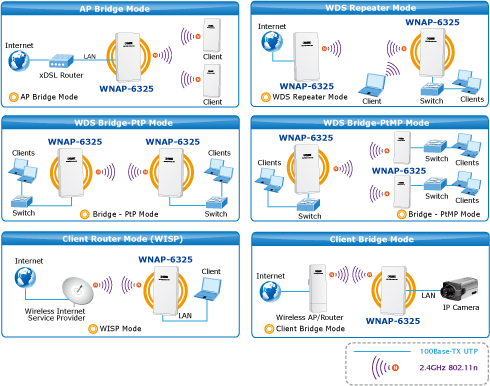

Wireless Mode |
■ AP |
|
■ Client |
|
■ WDS PTP |
|
■ WDS PTMP |
|
■ * WDS Repeater (AP+WDS) |
|
Channel Width |
20MHz / 40MHz |
|
Wireless Isolation |
Enable to isolate each connected wireless client to let them cannot access mutually |
|
Encryption Type |
64/128-bits WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1x |
|
Wireless Security |
Wireless LAN ACL (Access Control List) filtering |
|
Wireless MAC address filtering |
|
Enable/Disable SSID Broadcast |
|
Multiple SSIDs |
* Up to 8 |
|
Max. Wireless Clients |
25 |
|
Max. WDS APs |
8 |
|
Max. Wired Clients |
60 |
|
WMM |
Supports Wi-Fi multimedia |
|
QoS |
Supports Quality of Service for bandwidth control |
|
NTP |
Network Time Management |
|
Self Healing |
Supports Schedule Reboot |
|
Management |
Web UI, DHCP Client, Configuration Backup and Restore, Dynamic DNS, and SNMP |
|
Diagnostic Tool |
System Log, Ping Watchdog |
|
Environment and Certification |
|
Operating Temperature |
-20~70°C |
|
Operating Humidity |
10~95% non-condensing |
|
IP Level |
IP55 |
|
Regulatory |
CE, FCC, RoHS |
|
Accessory |
|
Standard Accessories |
■ WNAP-6325 x 1 |
|
■ PoE Injector x 1 |
|
■ Power Cord x 1 |
|
■ Plastic Strap x 1 |
|
■ Quick Installation Guide x 1 |
|
Remark |
* means future firmware supports |
