Hardware Specifications |
Interface |
LAN: 4 x 10/100BASE-TX, auto-negotiation, auto MDI/MDI-X RJ45 port |

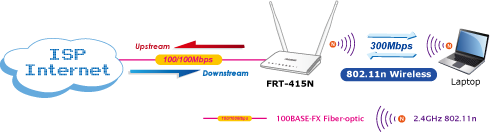

WAN: 1 x 100BASE-FX SFP slot |
Wireless: 2x 5dBi fixed antenna |
Optic Interface |
Connector: SFP (Small form-factor Pluggable) |
Mode: Vary on module |
Distance: Vary on module |
LED Indicators |
PWR, WAN, Internet, LAN1-4, WLAN, WPS, Security |
Button |
1 x Reset button |
1 x WPS button |
1 x Power button |
Material |
Plastic |
Dimensions (W x D x H) |
132 x 93 x 25 mm |
Power |
12V DC, 0.5A |
Router Features |
Internet Connection Type |
Shares data and Internet access for users, supporting the following internet accesses: |
■ PPPoE |
■ Dynamic IP |
■ Static IP |
■ Bridge |
Max. Session |
45659 |
Fiber-optic Cable |
■ 50/125μm or 62.5/125μm multi-mode fiber cable, up to 2km |
■ 9/125μm single-mode cable, providing long distance of 15/20/35/50km |
or longer (vary on SFP module) |
Routing Protocol |
Static routing |
RIP v1/v2 |
Security |
Built-in NAT firewall |
MAC/IP/Port filtering |
Content filtering |
SPI firewall |
Protocol/Feature |

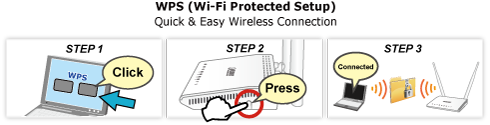

WPS |
DMZ and virtual server |
802.1D |
QoS |
DHCP server/relay |
IGMP snooping |
IGMP proxy and MLD proxy |
UPnP and DDNS |
System Management |
Web-based (HTTP) configuration |
SNTP time synchronization |
System log supports remote log |
Password protection for system management |
TR-069 |
Wireless Interface Specifications |
Wireless Standard |
IEEE 802.11b, 802.11g, 802.11n |
Frequency Band |
2.4 to 2.4835GHz (Industrial Scientific Medical Band) |
Modulation Type |
DBPSK, DQPSK, CCK and OFDM (BPSK/QPSK/16-QAM/64-QAM) |

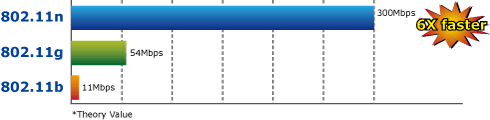

Data Transmission Rates |
802.11n (40MHz): |
270/243/216/162/108/81/54/27Mbps |
135/121.5/108/81/54/40.5/27/13.5Mbps (dynamic) |
802.11n (20MHz): |
130/117/104/78/52/39/26/13Mbps |
65/58.5/52/39/26/19.5/13/6.5Mbps (dynamic) |
802.11g: |
54/48/36/24/18/12/9/6Mbps (dynamic) |
802.11b: |
11/5.5/2/1Mbps (dynamic) |
Channel |
Maximum 13 Channels, depending on regulatory authorities |
Antenna Connector |
2 x 5dBi fixed antenna |
Wireless Data Encryption |
64-/128-bit WEP, WPA-PSK, WPA2-PSK, 802.1x encryption, and WPS PBC |
Standards Conformance |
Standard |
Fiber Interface |
Complaint with IEEE802.3/802.3u 10/100 BASE-TX, 100BASE-FX standard |
UP band support (25KHz to 276KHz) |
Packet Transfer Mode Ethernet in the first mile (PTM-EFM) |
Environment Specifications |
Temperature/Humidity |
Operating: 0~40 degrees C, 10%~ 90% (non-condensing), |
Storage: -10~70 degrees C, 0~95% (non-condensing) |
Certification |
CE |
