Hardware Platform |
CPU Frequency |
Intel D525 1.8GHZ |
Memory |
DDR3 2GB |
Supported hard drive |
4 x 2.5"/3.5" SATA I/II/III hard drives (Hard drive not included) |
File System: EXT3 |
Buttons |
1 x Power button |
1 x Reset button |
LAN Interface |

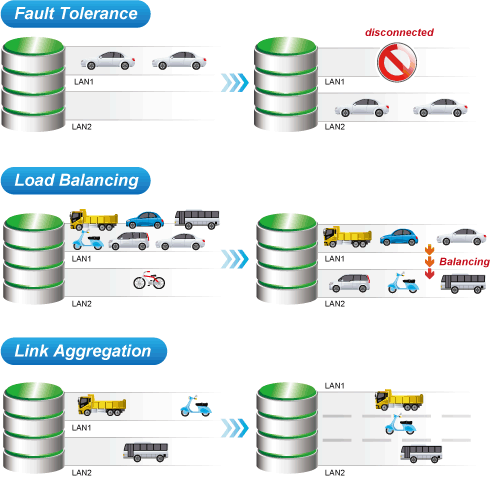

2 x Gigabit Ethernet ports with load balancing and fault tolerance |
USB Interface |
6 x USB2.0 port for external storage and UPS |
File System: FAT16/32, NTFS |
E-SATA Interface |
1 x E-SATA port for external storage |
File System: FAT16/32, NTFS |
COM Interface |
1 x COM port for UPS |
Fan |
1 x quiet cooling fan (12 cm, 12V DC, Max. 15400RPM) |
Alarm Buzzer |
System warning |
Secure Design |

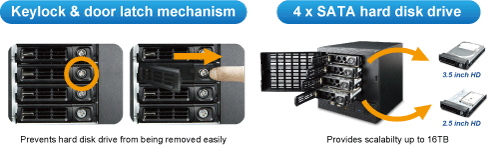

Lock security slot for Hard drive prevention |
Network and Configuration |
Network Standard |
IEEE 802.3 10Base-T |
IEEE 802.3u 100Base-TX |
IEEE 802.3ab 1000Base-T |
IEEE 802.3ad for dual link aggregation |
Protocol |
IPv4 & IPv6, AppleTalk |

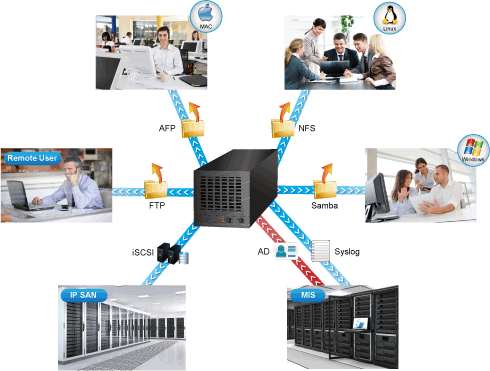

HTTPS, CIFS/SMB, AFP, NFS(v3/v4), FTP, FTPS (SSL, TLS), SSH, SMTP, SNMP, NTP, iSCSI |
Security |
Password protection |
IP address filtering |
HTTPS encrypted data transmission |
802.1X Port-Based authentication for network protection |
QoS / DSCP |
Supported Languages |
Unicode UTF-8 |
Supported Browsers |
Microsoft Internet Explorer 8, 9, 10 |
Google Chrome |
Firefox |
Supported Clients |
Windows XP, Vista, Windows 7 (32/64-bit), |
Windows Server 2003/2008 R2 |
Apple Mac OS 8.X / 9.X / 10.6X |
Linux & UNIX |
Data Backup and Management |
RAID level |
Single Disk, JBOD, RAID 0, 1, 1 + Hot Spare, |
5, 5 + Hot Spare, 6, 6 + Hot Spare, 10, 10 + Hot Spare |
Max. User / Groups |
2048 (include local/domain account/groups) |
Max. Shared Folder |
256 |
Max. Concurrent Connections |
150 |
Max. iSCSI Target/LUNs |
8 |
Disk Management |
Bad Block Scan & Hard Drive S.M.A.R.T. |

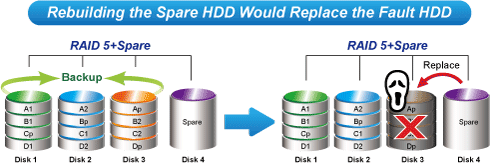

Global Hot Spare Drive |
RAID Recovery |
BSR (Bad Sector Remap) |

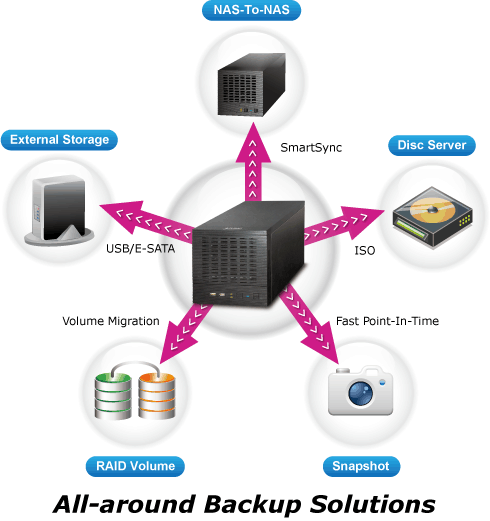

Backup Solution |

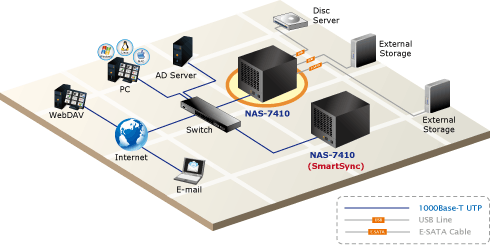

SmartSync: NAS-to-NAS, NAS-to-USB/E-SATA, USB/E-SATA-to-NAS |
Snapshot: Point-in-time Copy in a Flash |
System Profile: Recover from system failures |

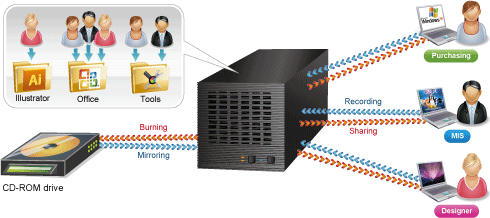

Disc Server: Optical disc recording |
Data Backup to Multiple External Storage Devices |
Security |
Network Access:SSH, HTTPS, FTP, CIFS/SMB, AFP |

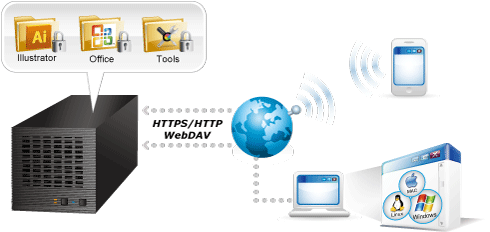

Encrypted Access: HTTPS, FTP with SSL/TLS, SSH/SFTP, Encrypted Remote Replication between NAS Servers |
Built-in Trend Micro antivirus software |
Access Control List (ACL) |
Secure Sockets Layer (SSL) 128-bit encryption |
Instant Alert via Email, Buzzer, trap, web reminder |
General |
Power Requirements |
100~240V AC, 3.5A, 50~60Hz |
Operating Temperature |
0 ~ 40 degrees C |
Operating Humidity |
10 ~ 80% (non-condensing) |
Weight |
5.1Kg |
Dimensions (W x D x H) |
200 x 320 x 210 mm |

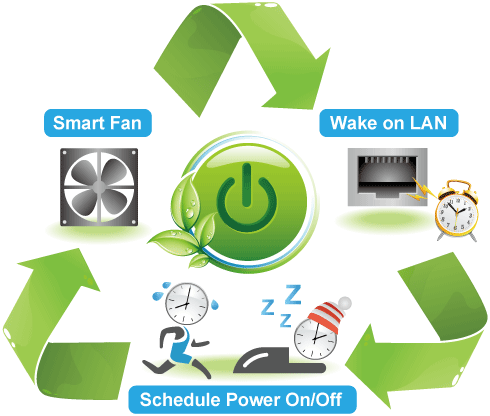

Power Management |
Wake on LAN |
Scheduled Power on/off |
Com Port, USB and Network UPS Support |

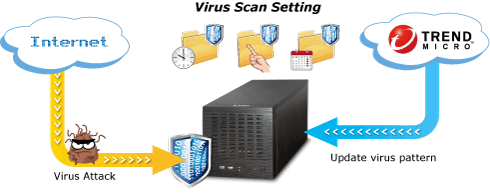

Antivirus |
Protection against the Latest Known Viruses, Trojans, and other Threats |
Virus Pattern Update on Manual or Scheduled Basis |
Email Notification upon Task Completion or Virus Detection |
Quarantines or Deletes Infected Files |
Real-time and Schedule Scan Setting |
Emission |
CE, FCC |
